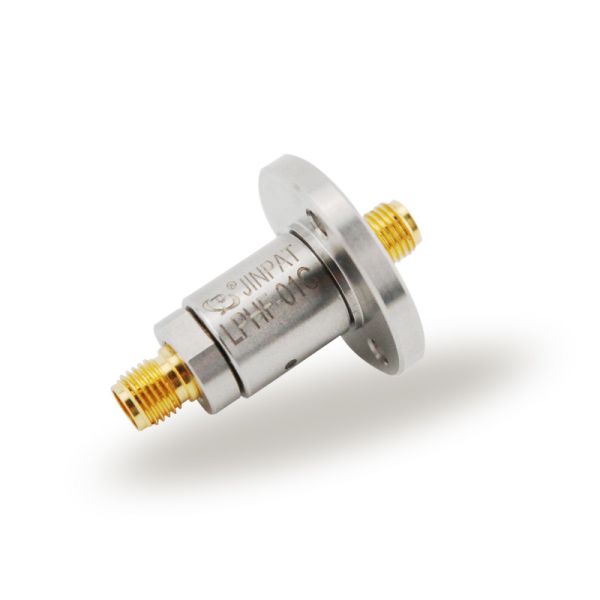

IP65 or IP68 2000rpm, >200 million revolutions, High Frequency Rotary Joint

Name: IP65 or IP68 2000rpm gt200 million revolutions High Frequency Rotary Joint
Brand: JINPAT
Price: 1 USD

Quality IP65 or IP68 2000rpm, >200 million revolutions, High Frequency Rotary Joint for sale

Brand Name : JINPAT

Model Number : LPHF-02E

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 500 pieces /week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Configuration : solid-shaft

Characteristic : multi-channel

Insertion Loss , max : 1.0 dB

Rotating Speed , max : 200 rpm

Advantage : Conpact design

Serial communication : RS232, RS485, RS422, etc.

Contact Now

Description

LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.

Specifications
Fiber types	SM or MM	Connector types	FC/SC/ST/LC(PC or APC)
Channel number	1	Estimated life cycle	＞200 million revolutions
Wavelength range	SM:1270-1650nm MM:650-1300nm	Vibration	MIL-STD-167-1A
Insertion loss	＜2dB	Mechanical shock	MIL-STD-810G
Insertion loss ripple	＜0.5dB	IP rating	IP65 or IP68
Return loss	≥40dB	Max Optical power	23dBm
Storage temperature	-55~+85℃	Maximum speed	2000rpm
Weight, approx	10g(No tail cable andconnection included)	Jacket types	0.9/2/3mm(Kevlar/PVC or Armor)
Package style	Pigtails on both ends	Working temperature	-45～+80℃

IP65 or IP68 2000rpm, >200 million revolutions, High Frequency Rotary Joint
