3 Circuits Small Dimension IP54 Transferring Power One-stop slip ring solution

3 Circuits Small Dimension IP54 Rotary Slip Ring Transferring Power

Flat Slip Ring Description

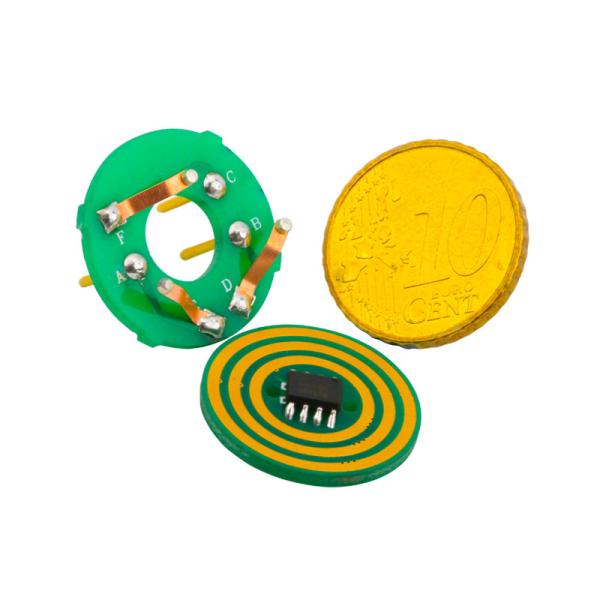

The LPKS000-0202-01S-PIN separate pancake slip ring is designed with φ21mm(OD0*6mm(H). Reliable contact and ultra-low electrical noise of the light slip ring, together with a high rotating speed are the notable characteristics. They are proven to be of qualified products, secured by the full-fledged quality control center. Moreover, Such Pancake units for encoder are equipped with ready-made photoelectric encoders. Moreover, they can stand the wet calorific test. 360° rotating transmission without surge kind of interference or data package loss wins the customers’ recognition.

Flat Slip Ring Features & Advantages

• Outline Dimension: φ21 mm (OD)*6mm (H)
• A creative unit that adopts surface mounted technology (SMT)
• 360° continuous rotating transmission of analog/data signal, compatible with data bus protocol
• Specially designed mounting hole/groove for flange
• Superior integrated chip and terminal
• Exquisite and rigorous structural design, easy to install in tiny space
• Extension can be done to support various signals transmission including Ethernet, RS and serial signals

Flat Slip Ring Application

• Packaging Machine
• Automation Equipment
• Robotics

Outline Drawing




Specification

Product Display



Company Show

IP54 pan cake slip ring

3 Circuits Rotary Slip Ring

IP54 Rotary Slip Ring

3 Circuits Small Dimension IP54 Transferring Power One-stop slip ring solution Images
