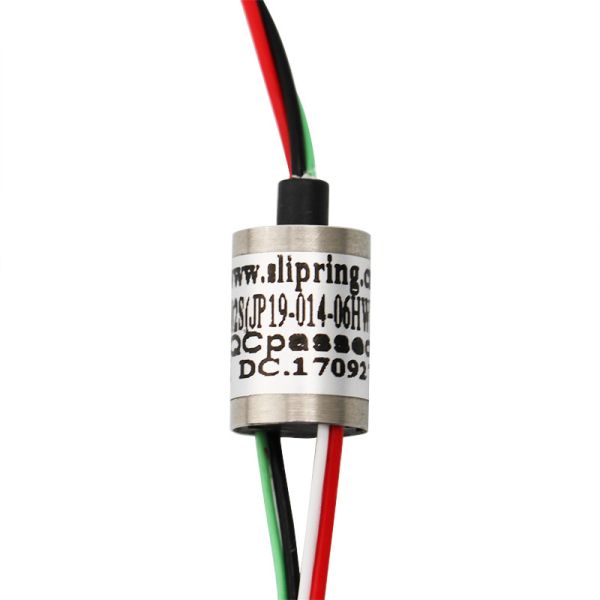

Miniature Slip Ring IP54 Integrated structure design

Name: Miniature Slip Ring IP54 Integrated structure design
Brand: JINPAT
Price: 1 USD

Quality Miniature Slip Ring IP54 Integrated structure design for sale

Brand Name : JINPAT

Model Number : LPMS-0203-02S(JP19-014-06HW)

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, C/C, Paypal

Supply Ability : 500 pieces / week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Rotating Speed : 0~300rpm

Contact Material : Gold To Gold

Life span : 1 million

Protection grade : IP54

Product name : Electrical slip ring

Speed : 250RPM

Contact Now

LPMS Super Miniature Capsule Slip Ring is able to integrate 12 or more circuits, with optional outer diameter from 5.5mm~11.1mm. This series is super mini size, with precise design using military-standard material. It can adapt to both high and low ambient temperature with a low resistance and small torque. These characteristics guarantee smooth and reliable operation of the slip rings and thus able to fit in high precision equipment or other applications with limited space and harsh conditions. Representative models: LPMS-05D/08A/08B/08C/08D/12U, etc. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.

Product parameter table

Electrical & Electronics		Mechanical
Circuits	2 circuits3A ; 2 circuits1A	Rotating Speed	0~300rpm
Rating Voltage	6VAC/DC	Contact Material	Gold To Gold
Dynamic Resistance Fluctuation Value	35MΩ	Housing Material	Stainless Steel
Dynamic Resistance Fluctuation Value	35MΩ	Lead Wire Length	Rotor : 100mm Stator: 50mm
Lead Wire Size	AWG26 # /30# silver plated copper UL,	/
Environmental		Others
Temperature	-20°C~+60°C	Life span	1 million
Humidity	≤60%RH	Note: "P" stands for power, "S" stands for signal
Protection grade	IP54	Note: "P" stands for power, "S" stands for signal

Product outline drawing
