12.7mm IP54 Through Hole Slip Ring Rotating Assembly

Name: 127mm IP54 Through Hole Slip Ring Rotating Assembly
Brand: JINPAT
Price: 1 USD

Quality 12.7mm IP54 Through Hole Slip Ring Rotating Assembly for sale

Brand Name : JINPAT

Model Number : LPT012-0602

Certification : ISO/CE/RoHS/UL

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, C/C, Paypal

Supply Ability : 500 pieces / week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Rating Voltage : 240VAC

Dielectric Strength : 500VAC@50Hz

Contact Material : Gold-Gold

Inner Diameter : Φ12.7mm

Working Speed : 0~2000rpm

Housing Material : Aluminum Alloy

Contact Now

12.7mm IP54 Through Hole Slip Ring Rotating Assembly

LPT Series through bore slip ring is a rotating assembly used to transfer power, control circuits, or data (analog / digital) from stationary inlets to rotating outlets.

LPT Series slip rings,The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.

Through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints).Need a combined fluid and electrical solution? We offer complete fluid rotary union and electrical slip ring integrated packages.

Electronic & Electruc			Mechanical
Circuits	Total	6 CKT	Working Speed	0~2000rpm
	Detail	6X2A	Inner Diameter	Φ12.7mm
Rating Voltage		240VAC	Contact Material	Gold-Gold
Dielectric Strength		500VAC@50Hz	Housing Material	Aluminum Alloy
Insulation Resistance		≥300MΩ@300VDC	Lead Wire Length	Stator:300mm Rotor:300mm
Environment			Remarks
Working Temperature		-20°C~+125°C	Application	/
Working Humidity		≤60%RH	Other	/
IP		IP50	Note:"P" stands dor power, "S" stands for signal

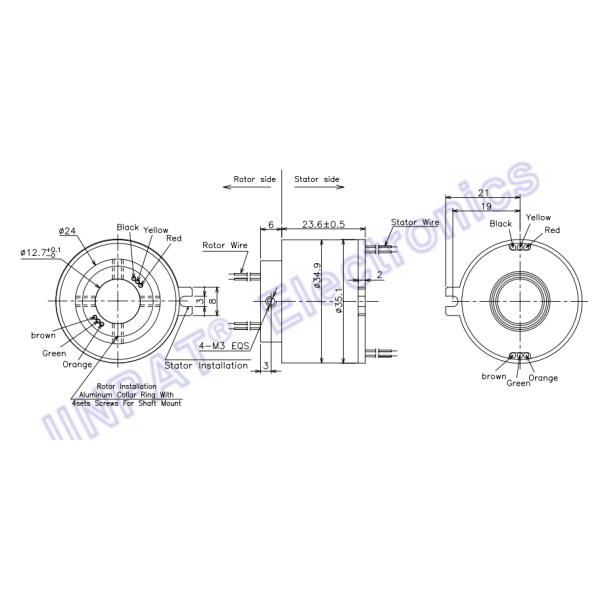

Product outline drawing

12.7mm IP54 Through Hole Slip Ring Rotating Assembly

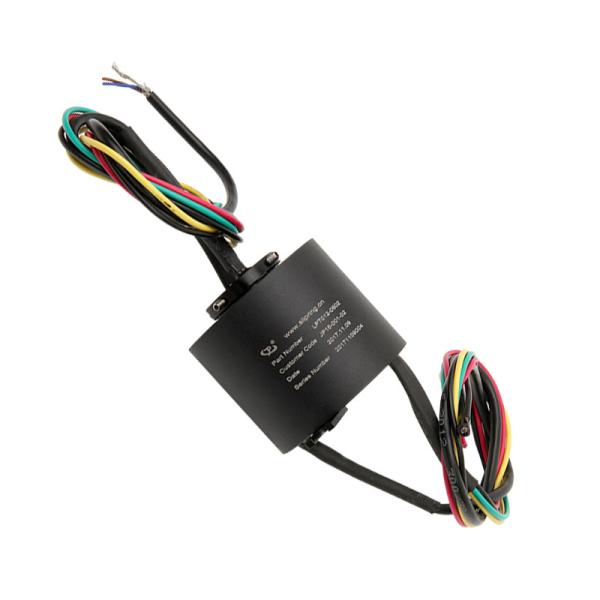

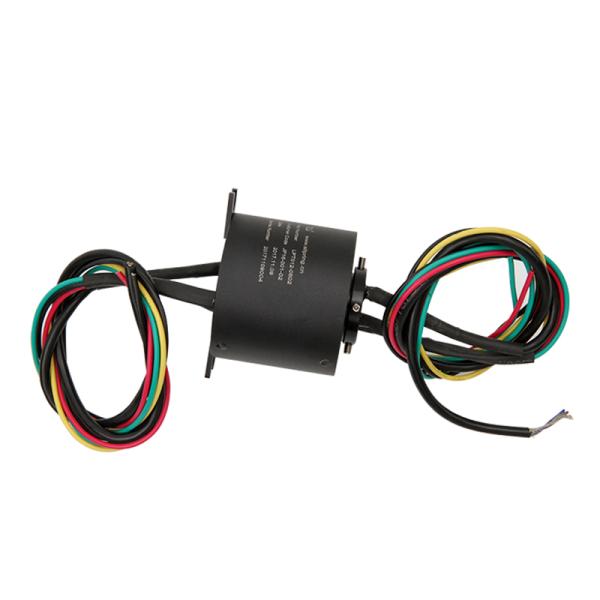

product picture
