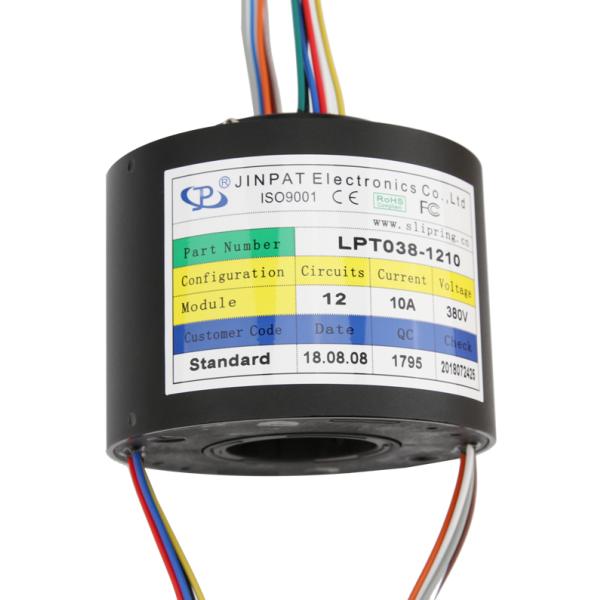

38.1mm Through Hole Slip Ring 12 Circuits 10A 300RPM
Premium Products
38.1mm Through Hole Slip Ring 12 Circuits 10A 300RPM
1
2
3
Place of Origin :Guangdong, China
Brand Name :JINPAT
Model Number :LPT038-1210
MOQ :1
Price :$127-153
Hole Diameter :38.1 mm
Working Speed :0~300 RPM
Contact Material :Precious metal
Circuits :12
Current Rating :10A
Voltage :240 VAC/DC
Dielectric Strength :≥1000V@50Hz between circuits
Insulation Resistance :≥500MΩ@500VDC
Housing Material :Aluminum alloy
Working Temperature :-20~+60℃
Humidity :≤60%RH
Protection Grade :IP50
Speed :300 rpm continuous
Bearings :Precision ball bearings
Torque :Low torque
Contact Now
Product Description
Bargain Price Only in Alibaba
Specification
Circuits
12
Current Rating
10A
Voltage
240 VAC/DC
Dielectric Strength
≥1000V@50Hz between circuits
Insulation
≥500MΩ@500VDC
Hole Diameter
38.1 mm
Working Speed
0~300 RPM
Contact
Precious metal
Housing
Aluminum alloy
Working Temperature
-20~+60℃
Humidity
≤60%RH
Protection Grade
IP50
Outline Dimension
Product Display
Features
16 circuits through bore slip ring
Precious metal contacts
10 A per wire
Precision ball bearings for long life
Speed up to 300 rpm continuous
Compact size
Sealed units available
Low torque minimizes system torque budget
Rapid delivery
Application
Radar antenna
Rotary Platform
Engineering machine
Packaging Machine
Test Equipment
Installtion instructions
The slip ring body shall not be used for bearing, and the wire shall not be subjected to external pulling force;
When installing the slip ring, the rotor and the stator can not be hard-wired. It is recommended to fix the slip ring on the rotating shaft with four set screws, insert the rotation-proof piece into the rotation-proof piece, and comb the wire to avoid interference or breakage of the wire; Slip rings are precision electrical components. If the environment is harsh, add protective measures or use a custom-made slip ring with a higher degree of protection.
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
Signal Slip rings (USB2.0/USB3.0 slip ring,fiber optic rotary joint,high frequency slip ring,etc)
Pneumatic/Hydraulic Rotary Unions
Custom Slip Rings
Large volume series
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
